Kakaretso ea Sehlahisoa

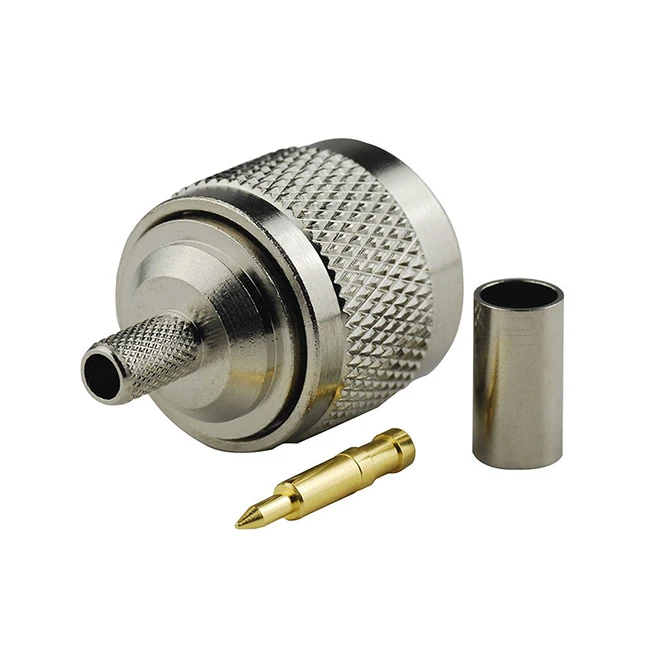

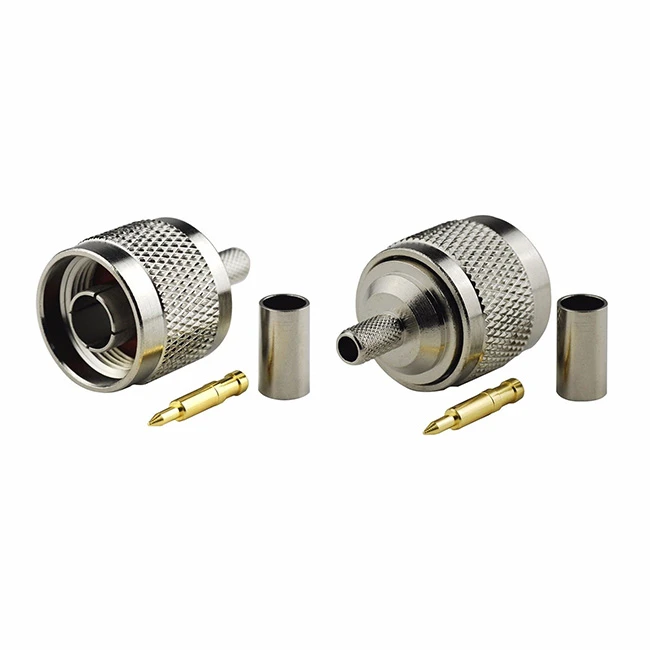

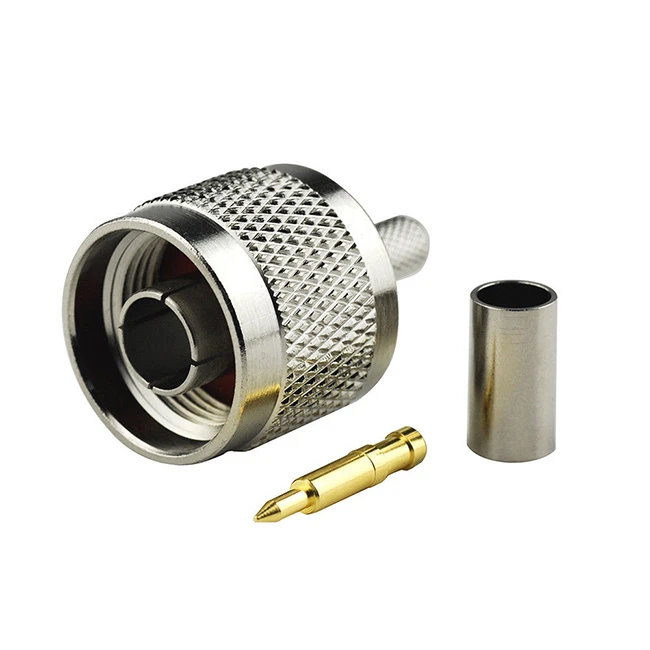

Mofuta oa N male crimp connector ke N-C-J1.5.N series e tumme haholo ka screw-coupling middle-kapa-low power coaxial connectors tse nang le impedances tsa 50Ω le 75Ω.
-likhokahanyo tsa mofuta oa N{0} hangata li fumaneha ka mefuta e 'meli: 50 ohm le 75 ohm.
50 ohm ke boleng bo atileng haholo ba RF le microwave mme e loketse boholo ba lisistimi tsa RF le data transmission. 50-ohm N-likhokahanyo tsa mofuta oa ohm li sebelisoa ho hokela lithapo tsa coaxial tse nang le 50-ohm impedance ho lisebelisoa bakeng sa tšebetso e nepahetseng ea mats'oao. Li sebelisoa haholo lits'ebetsong tsa puisano tse se nang mohala, lits'ebetso tsa radar, lisebelisoa tsa liteko le litekanyo, le lisebelisoa tsa puisano tsa microwave.
75-likhokahanyo tsa mofuta oa 75-li sebelisoa haholo ho tsamaiso ea lifitio le tsamaisong ea khaso, kaha lisistimi tsena hangata li sebelisa 75-ohm coaxial cables ho fetisa matshwao a video{3}}ohm N-type likhokahanyo li boetse li sebelisoa ho hokela lithapo tsa coaxial tse nang le 75-ohm impedance. Li sebelisoa haholo-holo lits'ebetsong tsa phetisetso ea video, lits'ebetso tsa phatlalatso, le lisebelisoa tse hlokang phetiso ea video e potlakileng joalo ka HD lik'hamera le lisebelisoa tsa litšoantšo tsa bongaka.
Sehokelo sa mofuta oa N-ke sehokelo sa RF se mahareng-se boholo bo mahareng se sebelisoang ho hokela lithapo tsa coaxial. Ke e 'ngoe ea lihokelo tsa pele tse khonang ho fetisa matšoao a maqhubu a microwave.
Motlakase
|
Tšitiso |
50Ω |
|
Maqhubu a Range |
0-6GHz |
|
Voltage e sebetsang |
Ka tlase ho kapa ho lekana le 1000V |
|
VSWR |
Ka tlase ho kapa ho lekana le 1.15@2.5GHz, Ka tlase ho kapa ho lekana le 1.25@6GHz |
|
Khanyetso ea Insulation |
E kholo ho feta kapa e lekana le 5000mΩ |
|
Ho mamella Voltage |
2500V |
|
Center Contact Resistance |
Ka tlase ho kapa ho lekana le 1mΩ |
|
Kantle ho Kopana le Resistance |
Ka tlase ho kapa ho lekana le 1mΩ |
|
Center Contact Retention Force |
E kholo ho feta kapa e lekana le 0.56N |
|
Ho tšoarella |
500 potoloho |
Lintho tse bonahalang le Plating
| N-C-J1.5 |
Lintho tse bonahalang |
Ho roala |
|
'Mele |
Koporo |
Cu-Sn-Zn3 |
|
Mokhanni oa setsi |
Phosphor boronse |
Ag |
|
Coupling Nut |
Koporo |
Cu-Sn-Zn3 |
|
O-ring Tiiso |
Rabara ea Silicone |
|
|
Sesebelisoa sa motlakase |
PTFE |
|
|
Lintho tse bonahalang |
Ho roala |
|
|
'Mele |
Koporo |
Cu-Sn-Zn3 |
|
Mokhanni oa setsi |
Phosphor boronse |
Ag |
Tikoloho
|
Mocheso Range |
-65℃~ +165 degree |
|
Mongobo |
＜95％ |
|
Letsoai-Teko ea moholi |
96h |
Zhenjiang Tongda Electronics Co., Ltd. ke moetsi ea hloahloa oa sehokelo sa N male crimp, se u fang lihlahisoa tse u loketseng.
